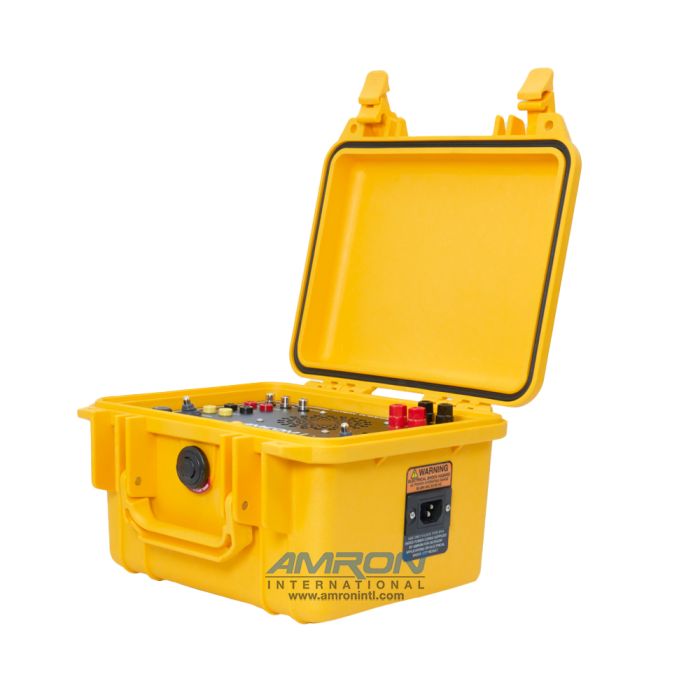

• Outdoor Rated AC Power Module
Weather resistant, IP65 rated AC power entry module accommodates country specific AC power cords.
• Country Specific V-Lock AC Power Cord
At time of order, simply choose the IP54 rated Locking AC power cord you need.
FEATURES
Built-in internal charger with medical grade power supply.
Integrated intelligent battery charging circuitry, allowing the unit to be left on charge indefinitely without damage to the batteries or communicator.
Communicator can be charged while in operation.
Supplied standard with internal 12V rechargeable battery.
Improved battery life of 85 hours.
Can Operate With Either AC Power Operating Range: 90-264 VAC, 50-60 Hz or 12 VDC
Abundant audio power to support two divers.

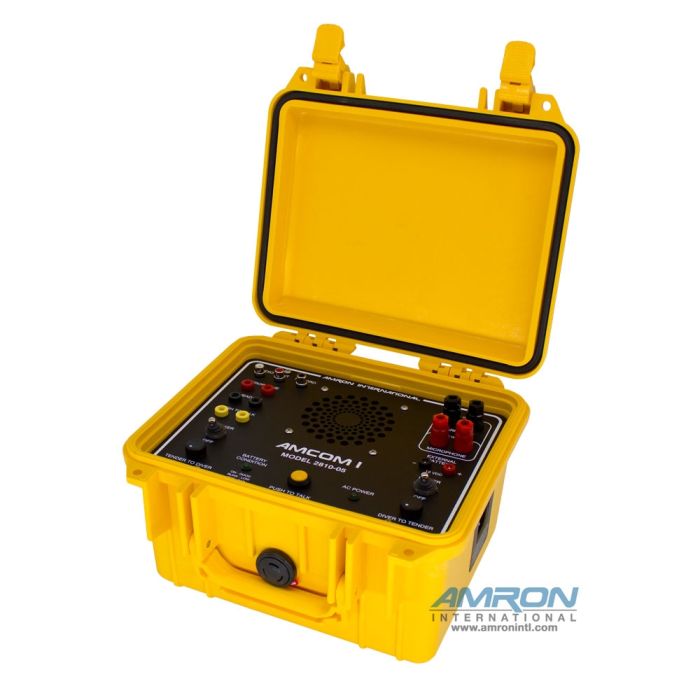

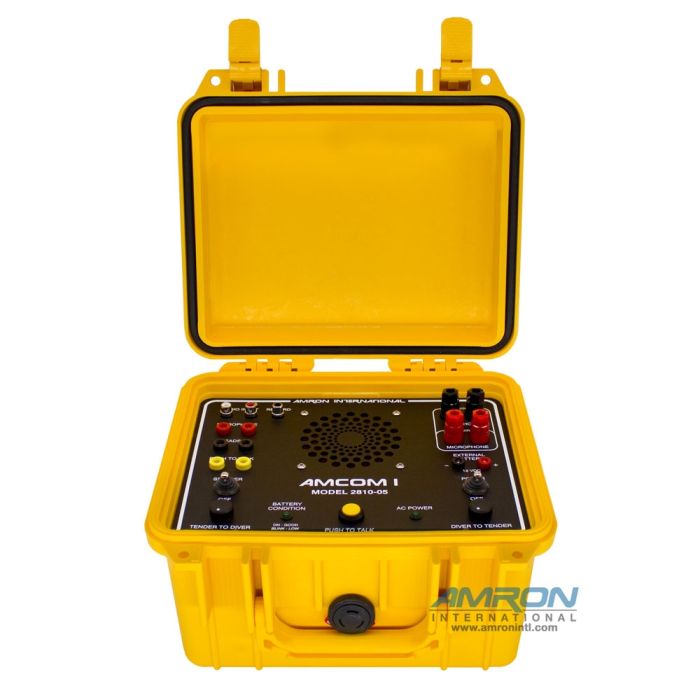

All controls and connections located on front panel.
Independent diver and tender controls.
Operates in 2 or 4-wire modes.
MP3 player input allows for an external audio signal for diver entertainment.
Record jack for recording dive operation audio.
External 12 VDC power connection.
SPECIFICATIONS
Frequency Response: 300 – 4000 Hz
DC Power Supply Voltage: 12 VDC nominal, (9 volts minimum – 16 volts maximum)
AC Power Supply Range: 90-264 VAC, 50-60 Hz
Entertainment Input Impedance: >47 kOhms
Nominal Power Supply Voltage: 12 VDC
Operational Supply Voltage: 9 – 18 VDC
Sensitivity (Input): 1.8 mVRMS
Maximum Output Power (4 Ω load, 14 VDC): 20 watts
Battery Life: 85 hours
Panel: Powder coated stainless steel
Enclosure: High impact resistant plastic
Size Length: 10.62 in. (26.98 cm)
Width: 9.68 in. (24.59 cm)
Height: 6.87 in. (17.45 cm)
Weight: 11.45 lbs. (5.20 kg)
Panel Dimensions: 9 3/8 in. width x 7 3/16 in. height
Listed on the SEA 00C3 Authorization for Navy Use (ANU) Program list, Category 4.3.23 One Diver Communications Box
INCLUDED WITH COMMUNICATOR
(1) Amron 2890-05 12 VDC Sealed Lead Acid Gel-Cell Rechargeable Battery with Slide terminals
(1) Amron 2810-05-UM One Diver Portable Communicator User Manual
